SPECIFICATIONS
MODEL FE3R15N FE3R20N FE3R25N
Unit Type 3-Wheel Electric Forklift, Rear Wheel Drive
Load Capacity 1,500lb 2,000lb 2,500lb
Load Center 19.7" 19.7" 19.7"
Power 24V/280Ah Standard | 24V/420Ah Standard
Battery Charger 24V/35A 110V Single Phase Charger | 24V/65A 240V Single Phase Charger
Fork Dimensions 42" Standard 42" Standard 42" Standard
Std Lift Height 118" 118" 118"
Collapsed Height 77.4" 77.4" 77.4"
Mast Stages 2 or 3 2 or 3 2 or 3
Turning Radius 45.7" 52" 53.1"
Vehicle Dimensions Download Brochure
Travel Speed Download Brochure
OPTIONS
Cascade Side-shiftSide-shift fork positioner
Internal hosing for optional Mast selections (2-Stage Free View Mast, 2-Stage Full Free View Mast, 3-Stage Full Free View Mast

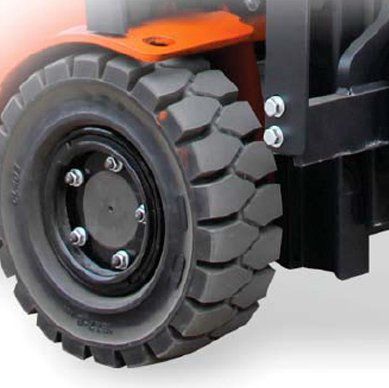

White Non-marking Solid Pneumatics

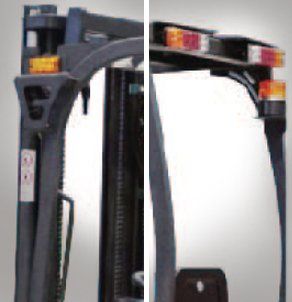

Rear LED work lights
Comfort Package (Including Rear Grab Bar with Horn + Left & Right Rearview Mirrors, USB Connector + Deluxe Grab Bar + Deluxe Full Suspension Seat)
Blue light
Forward and Reverse on Hydraulic handle
Fire extinguisher
Ignition Lock-out seat belts
Optional Fork Lengths

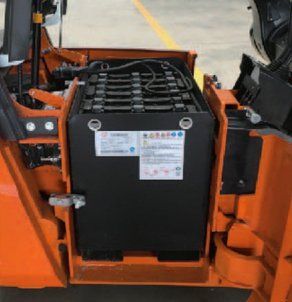

Optional Batteries and Chargers (including a Lithium option)
