OPH26 OPH26K MAN-UP ORDER PICKER - LITHIUM

 Lithium man-up order picker  - High reach - High productivity.

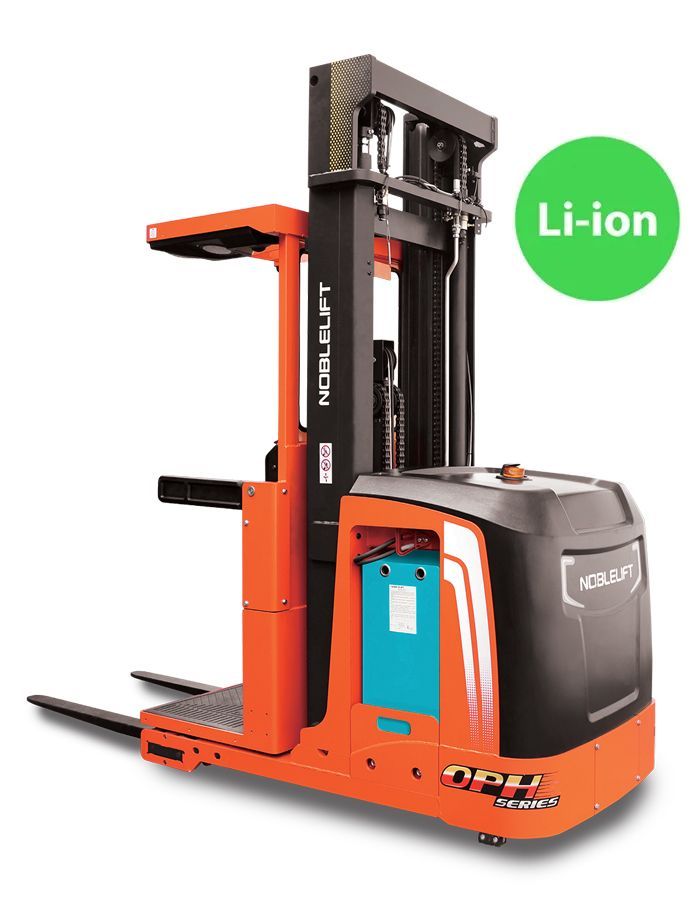

OPH26 / OPH26K
Lithium Man-Up Order Picker

The OPH26 / OPH26K Series Lithium Man-Up Order Pickers operate within a 64” aisle width, have a 2,600 lbs lift capacity and are engineered to deliver exceptional versatility, easy handling and very low maintenance. With a wide range of capabilities, these order pickers can adapt to a variety of warehouse, manufacturing, distribution and food storage environments. They are designed to help run a faster, more efficient operation. Choose from (6) lift heights ranging from 177” to 354”. Lithium charger included.


They offer high-speed lifting and lowering and are equipped with a lithium battery capable of multiple shift operation. AC Drive and AC Lift motors contribute to smoother operation, greater energy efficiency and longer component life. A high-power platform fan provides comfortable operation in high temperature environments. High-maneuverability and high-reach capabilities make these order pickers the ideal choice for your most demanding applications where efficient, narrow aisle, high-lift height material handling is required.


FEATURES

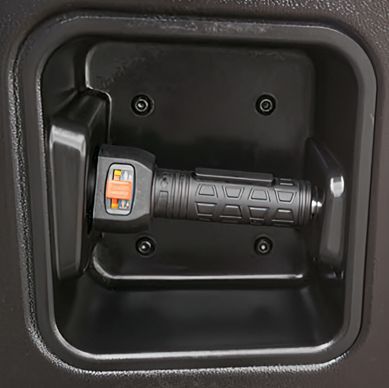

Multi-Functional Handle controls key vehicle functions – travel speed and proportional lifting and lowering.

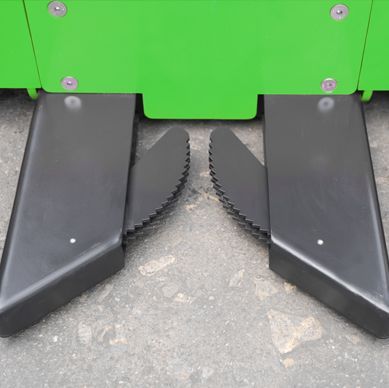

Auto Pallet-Locking Clamp provides instant load stabilization while significantly boosting load handling speed.

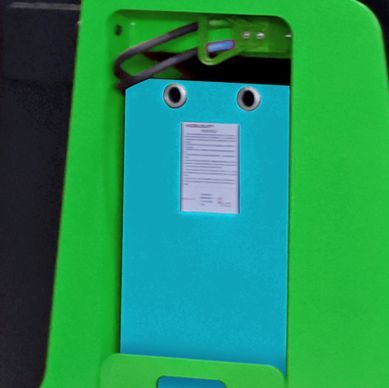

Smart Lithium Battery
Large capacity, fast-charging (2.5 hours) maintenance-free Lithium battery, capable of multiple shift operation. Side extraction reduces maintenance time.

Wireless 4G battery monitoring allows for remote battery programming and troubleshooting.

The integrated BMS (Battery Management System) controls all important parameters and performance of the lithium battery.

Curtis Controller and CAN-BUS Technology
Easily check condition and troubleshoot with Curtis controller and CAN-bus technology.

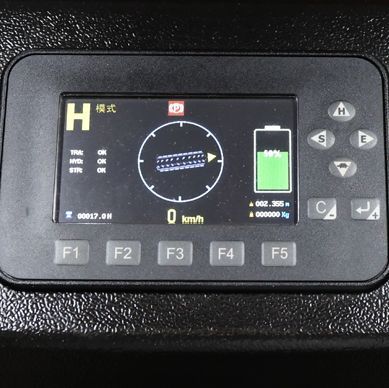

Large LED Screen
Large LED screen conveniently displays lifting weight, lifting height, speed, power, steering, fault code, alarm and more.

Weight Activated Foot Pedal automatically stops the vehicle when the operator’s foot is removed from the pedal.

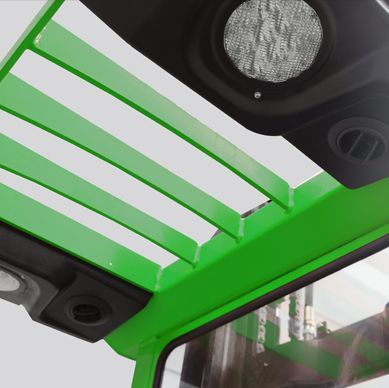

Platform Lights for dimly lit areas. High-power Platform Fan keeps operator comfortable in high temperatures.

Wide View and Clear Visibility
Mast layout is optimized for a wide view and clear visibility while operating.

USB connector for charging and powering of additional devices during operations.

Easy-Maintenance
Convenient and fast access to any component of the truck. No Special tools are required.

SPECIFICATIONS

MODEL                                                    OPH26-177                                   OPH26-189                                    OPH26-236
 Unit Type                                                                                 Lithium Man-Up Order Picker
Load Capacity                                       2,600lb                                        2,600lb                                        2,600lb
Load Center                                              24"                                               24"                                               24"
Power                                                                                        24V / 560Ah Lithium Battery
Battery Charger                                                                                     24V/200A
Fork Dimensions                                                                                42" Standard
Max Lift Height                                        177"                                             189"                                             236"
 Min Lift Height                                         2.4"                                              2.4"                                              2.4"
Mast Stages                                                3                                                  3                                                  3
Turning Radius                                         72"                                               72"                                               72"
Vehicle Dimensions                                                                          Download Brochure
Travel Speed                                                                                      Download Brochure

OPTIONS

Fork lengths: 48”,  54”,  60”

SPECIFICATIONS

MODEL                                        OPH26K-177       OPH26K-189        OPH26K-236         OPH26K-275       OPH26K-315       OPH26K-354
 Unit Type                                                                           Lithium Man-Up Order Picker
Load Capacity                             2,600lb                2,600lb                2,600lb                 2,600lb              2,600lb               2,600lb
Load Center                                    24"                       24"                       24"                       24"                     24"                      24"
Power                                                                                  24V / 560Ah Lithium Battery
Battery Charger                                                                               24V/200A
Fork Dimensions                                                                          42" Standard
Max Lift Height                              177"                     189"                     236"                     275"                   315"                    354"
 Min Lift Height                               2.4"                      2.4"                      2.4"                      2.4"                    2.4"                     2.4"
Mast Stages                                      3                          3                          3                           3                        3                         3
Turning Radius                               72"                       72"                       72"                        72"                    72"                      72"
Vehicle Dimensions                                                                          Download Brochure
Travel Speed                                                                                      Download Brochure

OPTIONS

Fork lengths: 48”,  54”,  60”
