SPN22AG - SEMI ELECTRIC

Semi-electric stacker - Light-duty - Low cost operation.

SPN22AG  Semi-Electric Stacker

The SPN22AG 2,200lb capacity, semi-electric stacker is available in (4) different maximum lift heights and is designed for light-duty lifting of loads, skids, racks and objects. The lifting is electric powered with the controls conveniently mounted on the dash. It is manually propelled. Forks and straddle legs can adjust from side to side to accommodate different skid widths.

This ergonomic stacker is also equipped with a built-in battery charger, a battery gauge on/off key switch, an operator protection screen, foot pedal parking brake, dual-push handles mounted to the mast at a comfortable height, and a spring-loaded steering handle with comfort grip. Semi-electric - Excellent value!

FEATURES

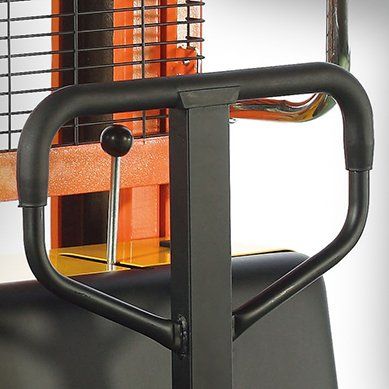

Ergonomic Comfort Grip Handle

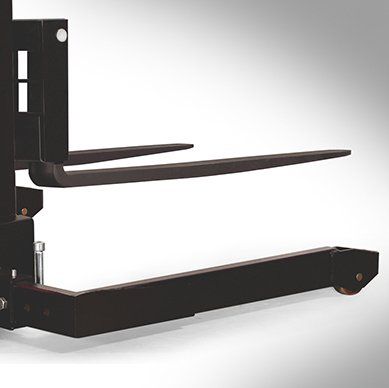

Adjustable Forks and Straddle Legs. Forks lower to the minimum height of 2 1/8".

Two-Swivel and Two Rigid Casters provides four-wheel support for heavy loads.

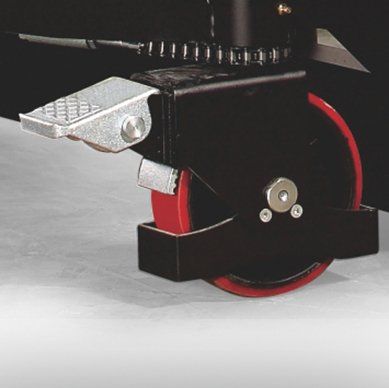

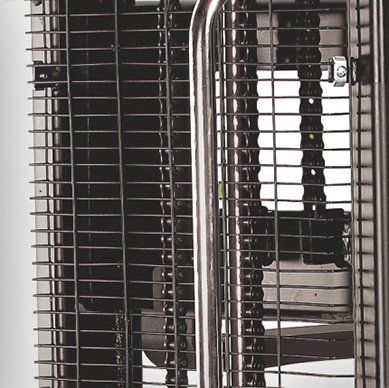

Foot Pedal Parking Brake and Safety Screen ensure safety during operations.

Sturdy and Reliable Mast made of rolled U-profiles. Hard chrome plated pistons. Adjustable lifting chain. Powerful lift motor with 2.1 HP.

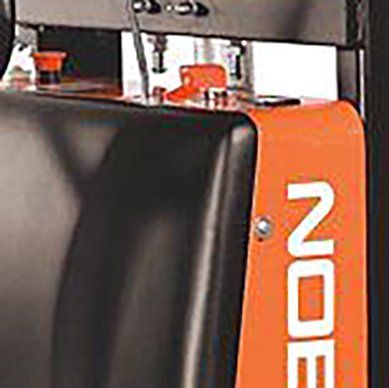

Integrated 150 AH Maintenance Free Battery supplies strong power to support frequent lifting tasks, an integrated charger facilitates easy and reliable charging of the built-in battery.

SPECIFICATIONS

MODEL                                           SPN22-63                             SPN22-98                             SPN22-118                            SPN22-138
Unit Type                                                                                          Semi-Electric Stacker
Load Capacity                             2,200lb                               2,200lb                                2,200lb                                    2,200lb
Load Center                                    24"                                     24"                                       24"                                           24"
Power                                                                      12V/100Ah Maintenance Free Deep Cycle Battery
Battery Charger                                                               Built-In 12V/10A Battery Charger 100V
Fork Dimensions                                                                                  42" Standard
Max Lift Height                               63"                                     98"                                      118"                                         138"
Min Lift Height                              2.13"                                  2.13"                                    2.13"                                        2.13"
Mast Stages                                    1                                         2                                          2                                              2
Turning Radius                             - - -                                     - - -                                       - - -                                          - - -
Vehicle Dimensions                                                                         Download Brochure
Travel Speed                                                                                     Download Brochure

OPTIONS

Optional fork-over type or fixed straddle base available
