PT55N
Electric powered rider pallet truck - Heavy duty - High performance.
PT55N Electric Pallet Truck
The PT55N 5,500lb capacity, rider electric pallet truck is a heavy duty, fully electric pallet jack. Its integrated and compact body design provide an extremely tight turning radius for maximum efficiency in narrow applications. It is designed to withstand the most demanding applications in order picking, warehousing, loading docks and more.
This ergonomic, heavy-duty pallet truck is equipped with high-quality components like German Schabmueller AC Drive motor, German ZF AC gearbox, Italian ZAPI Controller, German REMA control handle, Intorq electromagnetic brake, industrial battery and a 110 volt charger. It's high-speed allows operators to move more product in less time - Competitively priced - Highly Productive - One of the best values on the market.
Available in Lithium also.
FEATURES

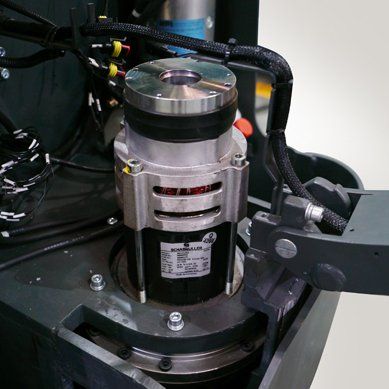

German AC Drive Technology
The powerful German Schabmueller maintenance free AC Drive motor in combination with the German ZF gearbox, Intorqe brake and Wicke (or Rader Vogel) drive wheel, deliver performance, efficiency, and reliability - Reducing your running costs while providing gentle or fast acceleration.

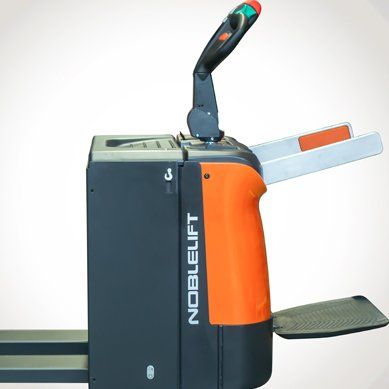

Tight Turning Radius
The integrated design of the fold-down rider platform with protective arms, along with the truck’s compact body design, provide an extremely tight turning radius. The platform’s suspension system provides a high level of comfort to operators.

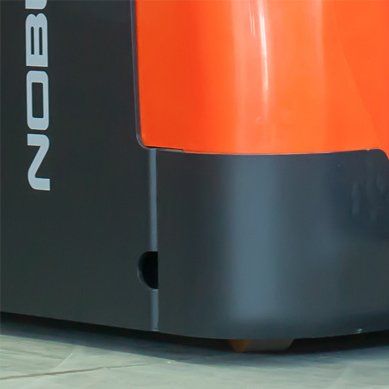

Robust and Reliable Design
The robust chassis with the strong 0.31 inch thick apron protects the truck and the components against mechanical impacts from the outside
In combination with the strong metal battery cover, the truck is well-equipped to reduce service work and damages.
Dirty floor environments have less effect to the vertical AC motor design as the components and the bakes are out of reach of direct impact.

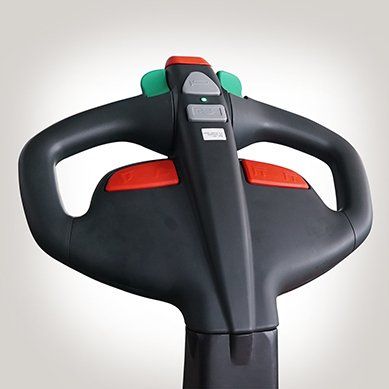

Ergonomic German REMA Control Handle
High quality German REMA control handle is ergonomic and reliable. It is equipped with dual butterfly-style thumb controls, horn, belly button, and a Crawl Speed button for safe operation in tight spaces. Contactless rocker switches for lifting/lowering ensures long Tiller life.

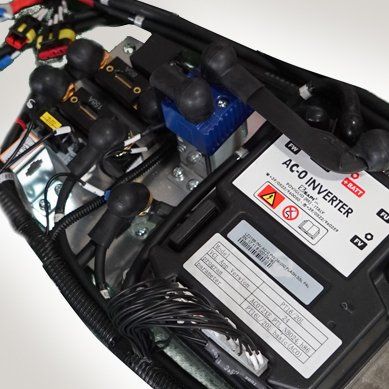

Italian ZAPI Controllers
Italian ZAPI driving and steering controllers provides reliable, high performance control.
Long Lasting Battery Capacities
- Side extracted battery
Maintenance Friendly
Engineered from the ground up to make service and maintenance easy. Easily remove the main cover to gain access to all components. Drive and castor wheel are easy to exchange without craning the truck.
Key switch limits access to approval personnel.
Emergency power disconnect
SPECIFICATIONS
Unit Type
Electric Rider Pallet Truck
Load Capacity
5,500lb
Load Center 24"
Power 24 volt / 270 Ah
Industrial Battery
Battery Charger 24V / 30 amp
110V External Charger
Fork Dimensions 27" W x 45" L Standard
Max Lift Height
4.7"
Collapsed Height 3.3"
Turning Radius 66.5"
Vehicle Dimensions Download Brochure
Travel Speed Download Brochure
OPTIONS
Optional EPS (Electric Power Steering) with Curve Speed Control
Optional Keyless PIN-Code/RFID panel
Optional Built-In Charger
Optional 54" Tall Load Back Rest
Optional Fork Configurations Available
Optional Batteries and Chargers (including a Lithium option)
