PT55L
Electric powered walkie pallet truck - Heavy duty - High performance.
PT55L Electric Pallet Truck
The PT55L 5,500lb capacity, electric walkie pallet truck is a professional grade, fully electric pallet jack. Its robust construction makes it the ideal choice for handling loads within your facility.
This ergonomic, compact pallet truck is equipped with high-quality components like German Schabmueller maintenance-free AC drive motor. German Kordel gearbox, Intorqe brake, Wicke drive wheel, Italian ZAPI controller, and a 110 volt plug-in charger. High-performance - Competitively priced - One of the best values on the market.
Available in Lithium also.
FEATURES

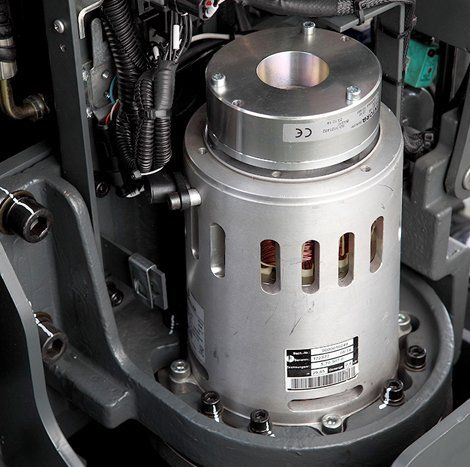

German AC Drive Technology
The powerful German Schabmueller maintenance free AC Drive motor in combination with the German Kordel gearbox, Intorqe brake and Wicke drive wheel, deliver performance, efficiency and reliability - Reducing your running costs while providing gentle or fast acceleration.

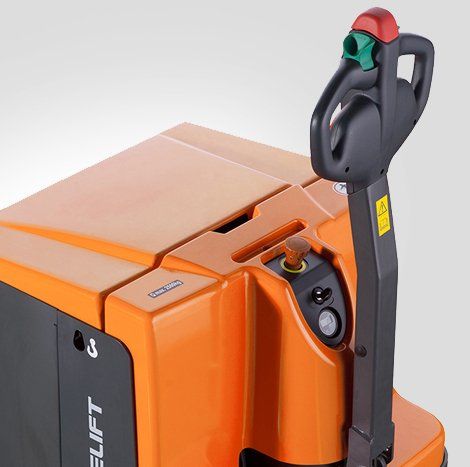

Long Tiller Design for Ergonomics and Safety
The operator can always keep a safe distance to the truck. The long design ensures lower operational forces and the tillers operating height is naturally positioned for optimum ergonomics. German control handle equipped with dual butterfly-style thumb controls, horn button and belly button. Crawl speed button provides safe operation in tight spaces.
Long Lasting Battery Capacities
Maintenance Friendly

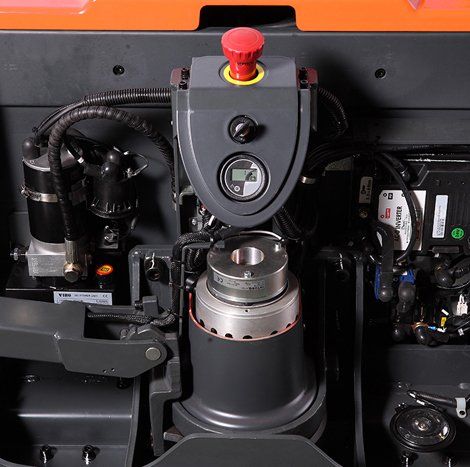

Engineered from the ground up to make service and maintenance easy. Remove the main cover with only 2 screws to gain access to all components. Drive and castor wheel are easy to exchange without craning the truck.
CAN-bus Technology
CAN-bus technology makes analysis and adjustments easier, reducing downtime.
Robust and Reliable Design
The robust chassis with the strong 0.31 inch thick apron protects the truck and the components against mechanical impacts from the outside
In combination with the strong metal battery cover, the truck is well-equipped to reduce service work and damages.
Dirty floor environments have less effect to the vertical AC motor design as the components and the bakes are out of reach of direct impact.
IP 54 protected controller, safe against dust and splash water.
Key switch limits access to approval personnel.
Emergency power disconnect
SPECIFICATIONS
Unit Type Electric Pallet Truck
Load Capacity
5,500lb
Load Center 24"
Power 24 volt / 350 Ah
Industrial Battery
Battery Charger 24V / 45 amp
110V Plug-In Charger
Fork Dimensions 27" W x 48" L Standard
Max Lift Height
8"
Collapsed Height 3.3"
Turning Radius 68.9"
Vehicle Dimensions Download Brochure
Travel Speed Download Brochure
OPTIONS
Optional Fork Widths: 20.5"
Optional Fork Configurations: 21" W x 48" L / 21" W x 60" L
Optional Side Replacement Battery
Optional 48" Tall Load Back Rest
Optional 100Ah Lithium-ion Battery/50A Charger
