SWB-280S LITHIUM WALKIE STRADDLE STACKER ELECTRIC

Lithium-iron powered walkie straddle stacker - Light to medium -duty - High productivity.

NOBLELIFT SWB-280S Lithium Walkie Straddle Stacker

SWB-280S
Lithium Walkie Straddle Stacker Series

The SWB-280S Lithium Walkie Straddle Stackers, capable of 2,800 lbs. load capacities, are economical, quiet, very low maintenance, ultra-smooth, and are perfect for light and medium duty material handling. They offer Full Free Lift heights from 51.2" to 70.9" and lifting heights from 100" tp 138". Their compact design, small turning radius and full free lifting mast makes them ideal for supermarkets, internal workshops, loading docks, narrow aisles, and applications within confined spaces like retail stores, trailers, containers, and warehouses.


This ergonomic stacker has a fast-charging maintenance-free lithium battery, a built-in charger, and can be opportunity charged, allowing for longer use throughout multiple work shifts. Highly Productive - Competitively priced - One of the best values on the market.


SWB-280S Lithium Walkie Straddle Stacker Smart Tiller - NOBLELIFT

FEATURES

Full Free Lift Mast
The full free lift mast allows the forks to be raised to a significant height without extending the inner mast channels, allowing operation within spaces with limited overhead clearance.

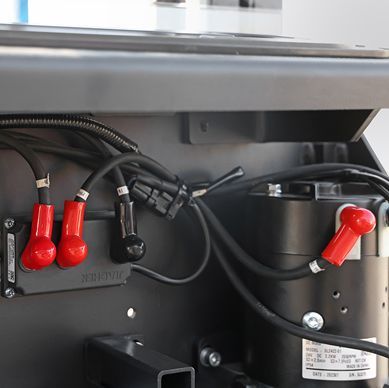

Soft Start Technology
Engineered with soft start technology for enhanced stability and controlled lifting.

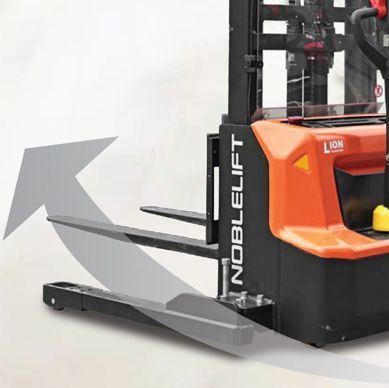

Auto Speed Reduction
Automatic speed reduction, while turning, helps to prevent product damage.

Smart Lithium Battery
Equipped with a maintenance-free Lithium battery and a built-in charger, the SWB-280S offers fast charging and opportunity charging, allowing you to charge between operations and during breaks.

The integrated BMS (Battery Management System) controls all important parameters and performance of the lithium battery.

3-Point Structure Design
Centered drive wheel provides excellent traction and stability. Casters are located to the left and right for additional stability. Straddle legs are equipped with single rollers.

Increased Strength and Durability
Innovative steel CJ channel mast design delivers added strength, stability and performance.
Smart Ergonomic Tiller with Keyless PIN Code Panel and RFID Card
Ergonomic design for comfortable daily operation. Includes battery discharge indicator, operating hour counter, and on-board diagnostics via error codes.

Turtle Speed Button - Pinwheel Capability
By holding the Turtle button down, the stacker will operate with the handle in the upright position, providing safe and easy operation within confined spaces.

Dual Butterfly-Style Thumb Controls for traveling. Emergency reverse, horn and electric lifting and lowering buttons.

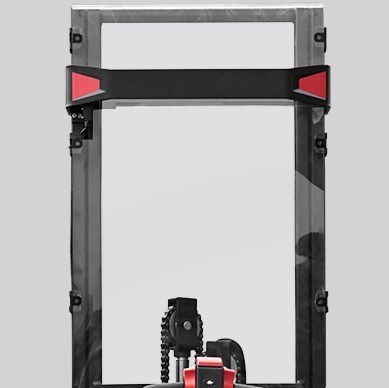

Increased Safety – Wide Mast
A wide mast provides operator with a clear view of the forks.

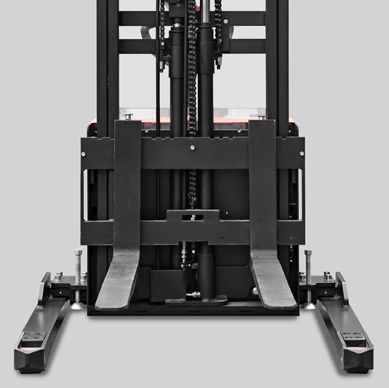

Adjustable Straddle Legs
Adjustable straddle leg design is suitable for diverse pallet sizes and the legs are made of solid steel for stability and safety.

Curtis Controller and CAN-BUS Technology
CAN-BUS technology makes analysis and adjustments easier, reducing downtime.

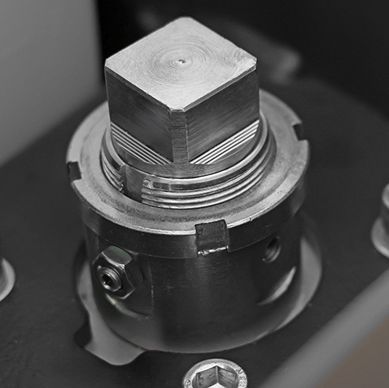

Easy-Maintenance
Convenient and fast access to any component of the truck. No Special tools are required.

SPECIFICATIONS

MODEL                                               SWB-280S-100             SWB-280S-112              SWB-280S-124               SWB-280S-140
Unit Type                                                                         Lithium Electric Walkie Straddle Stacker
Load Capacity                                     2,800lb                        2,800lb                          2,800lb                          2,800lb
Load Center                                            24"                              24"                                 24"                                246"
Power                                                                                  24 volt / 100Ah Lithium-iron LFP Battery
Battery Charger                                                                             Built-in 24V/25A 110V
Fork Dimensions                                                                                 42" Standard
Max Lift Height                                     100"                             110"                               122"                               138"
 Min Lift Height                                       2"                                 2"                                   2"                                   2"
Mast Stages                                            2                                  2                                     2                                    2
Turning Radius                                      53"                                53"                                 53"                                 53"
Vehicle Dimensions                                                                          Download Brochure
Travel Speed                                                                                      Download Brochure

OPTIONS

Optional Fork-over type
Optional Traction tire
