PS30RM - ELECTRIC

Electric mast reach counter balance stacker - Heavy-duty - Highly productive.

PS30RM  Electric Mast Reach Counter Balance Stacker

The PS30RM 3,000lb capacity, electric stacker is available in (5) different maximum lift heights. It combines a counterbalance stacker with a reach mast, allowing it to operate within tighter spaces. It's robust chassis and larger support wheels make it the ideal choice for handling loads within your most demanding warehouse applications.

This ergonomic stacker is equipped with high-quality components like German Schabmueller maintenance free AC Drive motor, German Kordel gearbox, an American Curtis controller and battery discharge indicator with hour meter. Highly Productive - Competitively priced.

Available in Lithium also.

FEATURES

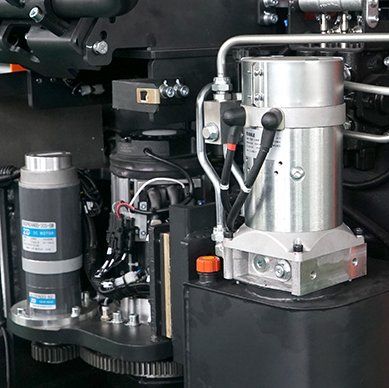

German AC Drive Technology

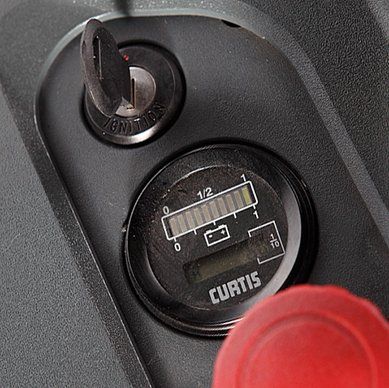

The powerful German Schabmueller maintenance free AC Drive motor in combination with the German Kordel gearbox, an American Curtis controller and battery discharge indicator with hour meter, deliver performance, efficiency and reliability - reducing your running costs while providing gentle or fast acceleration.

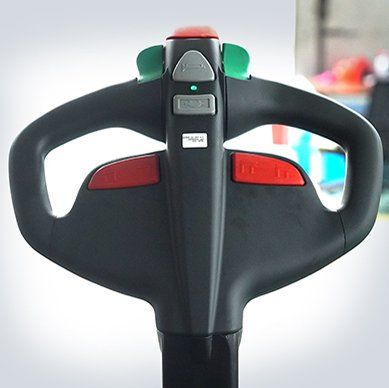

Ergonomic Tiller
Ergonomic control handle equipped with dual butterfly-style thumb controls, horn button and belly button. Crawl speed button provides safe operation in tight spaces.

Reach Mast
The PS30RM combines a counterbalance stacker with a reach mast, allowing it to operate within tighter spaces.

Fork Tilt
The fork tilt feature allows easier and safer staging and pallet handling.

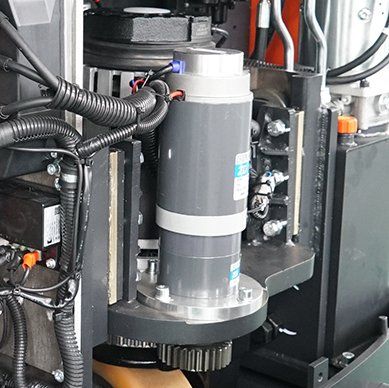

Electric Steering
Electric steering system provides effortless operation, reducing operator fatigue, helping to reduce accidents and property damage.

Maintenance Friendly
Engineered from the ground up to make service and maintenance easy.

Long Lasting Battery Capacities

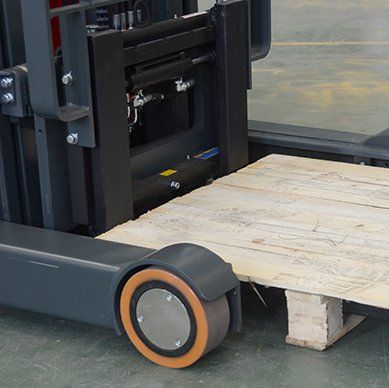

Robust Chassis
Robust chassis and larger support wheels provide extra durability for the most demanding warehouse operations.

Key switch limits access to approval personal

Emergency power disconnect

SPECIFICATIONS

MODEL                                 PS30RM-63                  PS30RM-71                  PS30RM-118                PS30RM-142                  PS30RM-177
Unit Type                                                                        Electric Stacker
Load Capacity                    3,000lb                       3,000lb                         3,000lb                         3,000lb                         3,000lb
Load Center                           24"                             24"                                24"                               24"                                24"
Power                                                24 volt / 270Ah Industrial Battery                             |           24 volt / 400Ah Industrial Battery
Battery Charger                             24V/35A Charger 110V                                      |                  24V/55A Charger 110V
Fork Dimensions                                                                 42" Standard
Max Lift Height                     63"                              71"                                 118"                            142"                              177"
Min Lift Height                      2"                                2"                                    2"                                 2"                                 2"
Mast Stages                          1                                 1                                      2                                  3                                  3
Turning Radius                                                      62.7"                                                    |                                  66.5"
Vehicle Dimensions                                                          Download Brochure
Travel Speed                                                                      Download Brochure

OPTIONS

Optional 3,300lb Capacity Available
Optional Side-Shift
Optional 200Ah Lithium-ion Battery 24V/80A Charger
