RT35-45R PRO - ELECTRIC
AC powered narrow aisle reach stacker - High reach - High efficiency.
RT35-45R Electric Pro Range Narrow Aisle Reach Stacker
The RT35-45R Pro Range 3,500lb to 4,500lb capacity, reach stacker has a reach-forward mast, allowing it to store goods without moving the truck itself. Its robust construction, maneuverability, and high-reach capabilities make it the ideal choice for your most demanding applications where large-scale, high-lift height material handling is required.
This ergonomic stacker is equipped with high-quality components and safety features. High efficiency – Heavy duty!
Available in Lithium also.
FEATURES

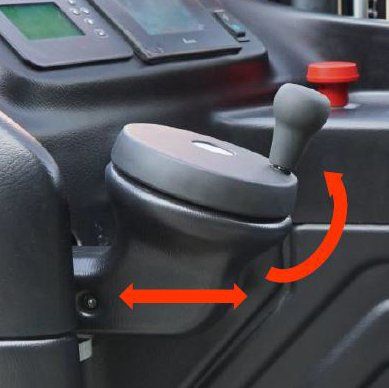

Steering System 180/360
Steering wheel adjusts in two directions and can be switched between 180 and 360 degrees base on operator’s preferences.
Buffering system provides safe and comfortable operation for fork lowering and mast forward / backward movement.

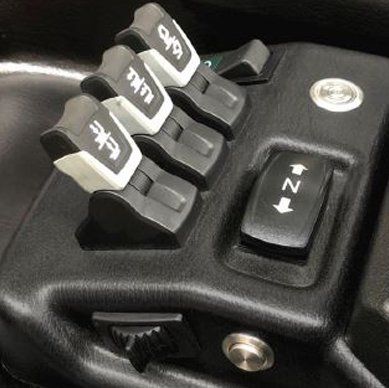

Fingertip Proportional Control
The fingertip proportional control provides smooth and proportional operation of hydraulics functions.
Advanced Components
Integrated AC system, Schabmuller motor, Curtis control system with high-precision gearbox provides flexible steering and high-quality driving performance.
Hydraulic System
Hydraulic system utilizes high quality components coupled with smart engineering to ensure the whole system runs cool and efficiently.

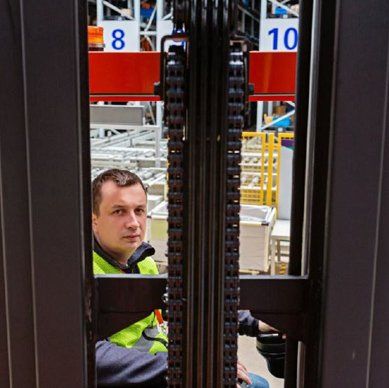

Visibility Through the Mast
Designed for perfect visibility through the mast. The forks can always be seen through the mast and the operator can see the left and right sides of pallets during lifting and loading.
Mast System
The highly-durable mast has reach forward function which allows the truck to store goods without moving the truck itself. This provides convenient and safe operation.
Ease of Maintenance
Easy access to all key components simplifies maintenance and reduces the time required. CAN communication protocols simplifies diagnostics, improves reliability and reduces down time.
SPECIFICATIONS
MODEL RT35R RT45R
Unit Type Electric Reach Stacker
Load Capacity 3,500 4,500lb
Load Center 24"
Power 48V/420Ah 48V/560Ah
Industrial Battery Industrial Battery
Battery Charger 48V/65A 220V 48V/80A 220V
3 Phase Charger 3 Phase Charger
Fork Dimensions 42" Standard
Std Fork Height Options available from 177" to 492"
Minimum Lift Height 7.6"
Mast Stages - -
Turning Radius 68.9"
Vehicle Dimensions Download Brochure
Travel Speed Download Brochure
OPTIONS
High Definition Camera - Wireless 2.4GHz
Height Pre-selection system
Optional Fork lengths
