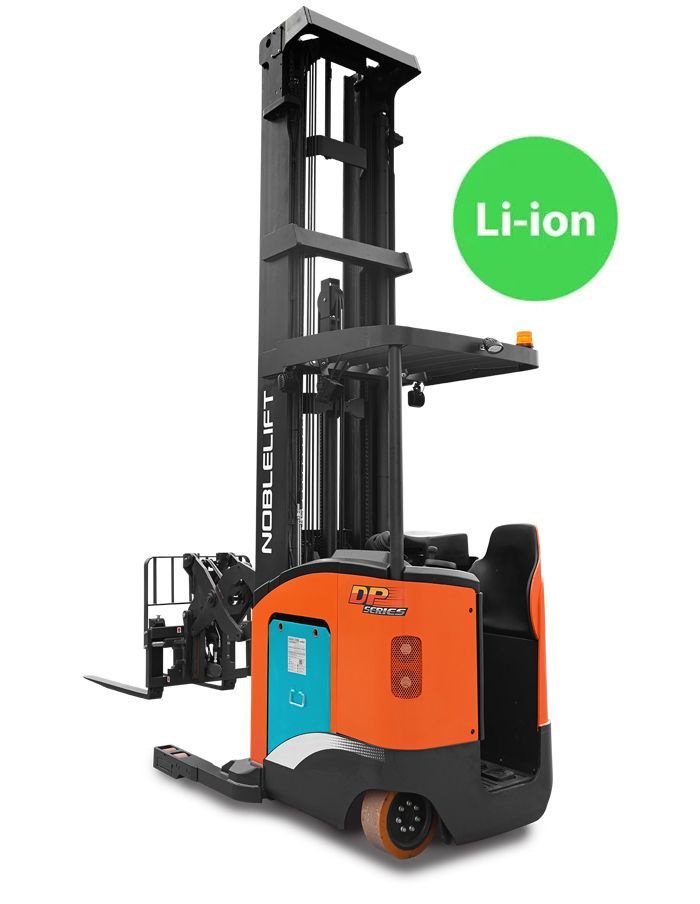

RT33-44SP / RT33DP STAND-UP PANTOGRAPH REACH TRUCK - LITHIUM

 Lithium stand-up pantograph reach truck  - High maneuverability - High productivity.

RT33-44SP / RT33DP
Lithium Stand-Up Pantograph Reach Truck

The RT33-44SP / RT33DP Lithium Single & Double Scissor Stand-Up Pantograph Reach Trucks have a lifting capacity of 3,300 to 4,400 lbs and operate within a narrow aisle. They have lift heights ranging from 177” to 453”, and a fork reaching distance ranging from 22.4” to 41.7”. They offer high-speed lifting and lowering and are equipped with a lithium battery capable of multiple shift operation. High-maneuverability and high-reach capabilities make these reach trucks the ideal choice for your most demanding applications where efficient, narrow aisle, high-lift height material handling is required.


They are equipped with dual independent AC drive motors with separate drive controllers that provide a superior driving experience. Lithium charger included. Boost your productivity with these highly maneuverable, very low maintenance, ultra-smooth, lithium reach trucks.


FEATURES

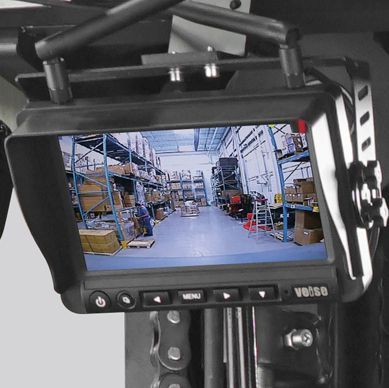

Wireless mast mounted fork view camera with HDMI color monitor provides an unrestricted view of the pallet and racking for increased productivity and increased safety.

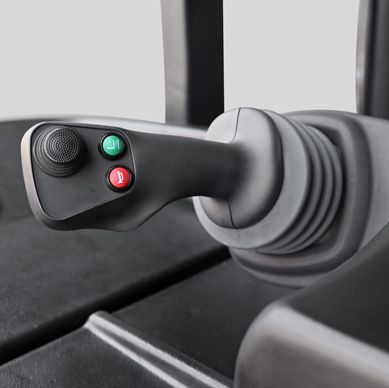

Multi-Functional Handle controls key vehicle functions – forward/backward travel speed, side shifting and proportional lifting and lowering.

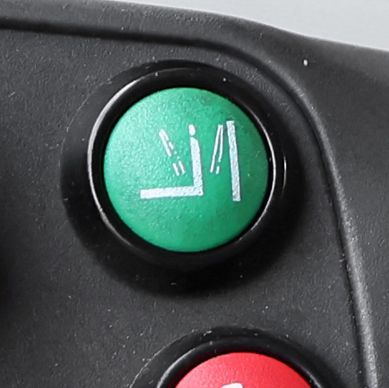

One-Button Tilt Control System ensures safety by limiting the tilt of cargo when forks are lifted high.

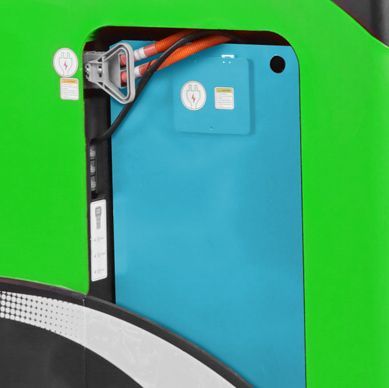

Smart Lithium Battery
Large capacity, fast-charging (2.5 hours) maintenance-free Lithium battery, capable of multiple shift operation. Side extraction reduces maintenance time.

Wireless 4G advanced battery monitoring system for remote battery monitoring and system data.

The integrated BMS (Battery Management System) controls all important parameters and performance of the lithium battery.

Curtis Controller and CAN-BUS Technology
Easily check condition and troubleshoot with Curtis controller and CAN-bus technology.

Adjustable Backrest and Hip Pad contour the body to ensure operator comfort throughout the entire work shift.

Adjustable Armrest can be adjusted to maximize the comfort of operators of different heights.
The Floor Suspension System adapts to the weight of the operator and provides impact and vibration protection.

Dual Independent AC Drive Motors with separate drive controllers provide superior maneuverability while turning.

AC Drive and Gearbox Technology ensure accurate control and travel speed.

Dual-Brake/Presence Pedal Design protects the operator and the forklift. If both pedals are not depressed, the forklift will be not travel in any direction.

Large LED Screen
Large LED screen conveniently displays lifting weight, lifting height, speed, power, steering, fault code, alarm and more.

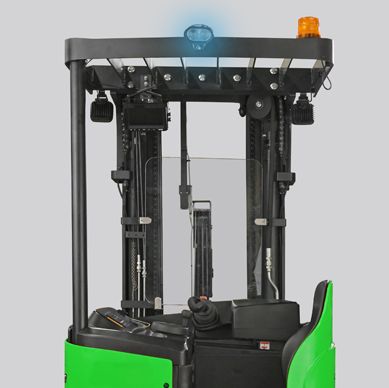

Wide View and Clear Visibility
Cab design, open view mast and overhead guard gives operator a clean line of site to the load and their surroundings for increased efficiency and improved safety.

Equipped with LED headlights, safety blue light and a buzzer for safe driving.

USB connector for charging and powering of additional devices during operations.

Easy-Maintenance
Convenient and fast access to any component of the truck. No Special tools are required.

SPECIFICATIONS

MODEL                               RT33SP177      RT33SP193      RT33SP256      RT33SP295      RT33SP334      RT33SP374      RT33SP413
 Unit Type                                                      Lithium Man-Up Order Picker - Single Reach
Load Capacity                                                                             3,300lb
Load Center                                                                                    24"
 Power                                                                          36V / 560Ah Lithium Battery
Battery Charger                                                                         36V/200A
Fork Dimensions                                                                    42" Standard
Max Lift Height                  177"             193"             256"            295"            334"            374"           413"
Mast Stages                                                                                                        3
Turning Radius                 71.9"            71.9"            71.9"           71.9"           71.9"           71.9"          73.8"
Vehicle Dimensions                                                            Download Brochure
Travel Speed                                                                        Download Brochure

OPTIONS

Height pre-selection system
Fork lengths: 54”,  60”
MODEL                               RT44SP177      RT44SP193      RT44SP256      RT44SP295      RT44SP334      RT44SP374      RT44SP413       RT44SP433       RT44SP453
 Unit Type                                                                         Lithium Man-Up Order Picker - Single Reach
Load Capacity                                                                                               4,400lb
Load Center                                                                                                      24"
Power                                                                                            36V / 560Ah Lithium Battery
Battery Charger                                                                                           36V/200A
Fork Dimensions                                                                                      42" Standard
Max Lift Height                  177"             193"             256"            295"            334"            374"           413"            443"            453"
Mast Stages                                                                                                        3
Turning Radius                 71.9"            71.9"            71.9"           71.9"           71.9"           73.8"          75.8"            75.8"          75.8"
Vehicle Dimensions                                                                               Download Brochure
Travel Speed                                                                                           Download Brochure

OPTIONS

Height pre-selection system
Fork lengths: 54”,  60”
 MODEL                               RT33DP177      RT33DP193      RT33DP256      RT33DP295      RT33DP334      RT33DP374      RT33DP413       RT33DP433      RT33DP453
 Unit Type                                                                         Lithium Man-Up Order Picker - Double Reach
Load Capacity                                                                                               3,300lb
Load Center                                                                                                      24"
Power                                                                                            36V / 560Ah Lithium Battery
Battery Charger                                                                                           36V/200A
Fork Dimensions                                                                                      42" Standard
Max Lift Height                  177"             193"             256"            295"            334"            374"           413"            443"            453"
Mast Stages                                                                                                        3
Turning Radius                 71.9"            71.9"            71.9"           71.9"           73.8"           75.8"          75.8"            75.8"          75.8"
Vehicle Dimensions                                                                               Download Brochure
Travel Speed                                                                                           Download Brochure

OPTIONS

Height pre-selection system
Fork lengths: 54”,  60”
