RT33ST  Electric Stand-On
Reach Stacker

The RT33ST 3,300lb capacity, stand-on reach stacker has a reach-forward mast, allowing it to store goods without moving the truck itself. Its robust construction, maneuverability, and high-reach capabilities make it the ideal choice for your most demanding applications where large-scale, high-lift height material handling is required.

This ergonomic stacker is equipped with high-quality components and safety features. High efficiency – Heavy duty!

Available in Lithium also.

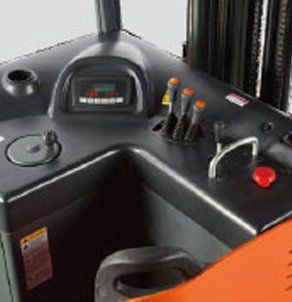

Intuitive Electronic Controls

Photo By: John Doe
Button

Birthday Sparks

Photo By: John Doe
Button

Fashion Magazine

Photo By: John Doe
Button

Blurred Lines

Photo by: John Doe
Button

FEATURES

Electronic Controls
Electronic controls are intuitive and easy to operate. Thermally enclosed, they are water and dust proof, increasing reliability and reducing maintenance.

Buffer System
Buffering system provides safe and comfortable operation for fork lowering and mast forward / backward movement.

Regenerative Braking
When braking, the motor automatically powers off to reduce power consumption and extend battery work time. Regenerative braking also minimizes brake wear and maintenance costs.

Advanced Components
Integrated AC system, KDS motor, ZAPI power steering and control systems with high-precision gearbox provides flexible steering and high-quality driving performance.

Hydraulic System
Hydraulic system utilizes high quality components coupled with smart engineering to ensure the whole system runs cool and efficiently.

Mast System
The highly-durable C-shaped mast has reach forward function which allows the truck to store goods without moving the truck itself. This provides convenient and safe operation.

Emergency Button
The conveniently located emergency button provides an instant cut-off of all power for optimal safety.

SPECIFICATIONS

Unit Type                                Electric Stand-On Reach Stacker
Load Capacity                        3,300lb
Load Center                           19.7"
Power                                      48 volt / 360 Ah
             Industrial Battery
Battery Charger                       220 - 440 Charger Options
Fork Dimensions                     42" Standard
Std Fork Height                       118"
Minimum Lift Height                7.6"
Mast Stages                               - -
Turning Radius                        68.9"
Vehicle Dimensions                Download Brochure
Travel Speed                            Download Brochure

OPTIONS

Optional 150Ah Lithium-ion Battery/75A Charger
